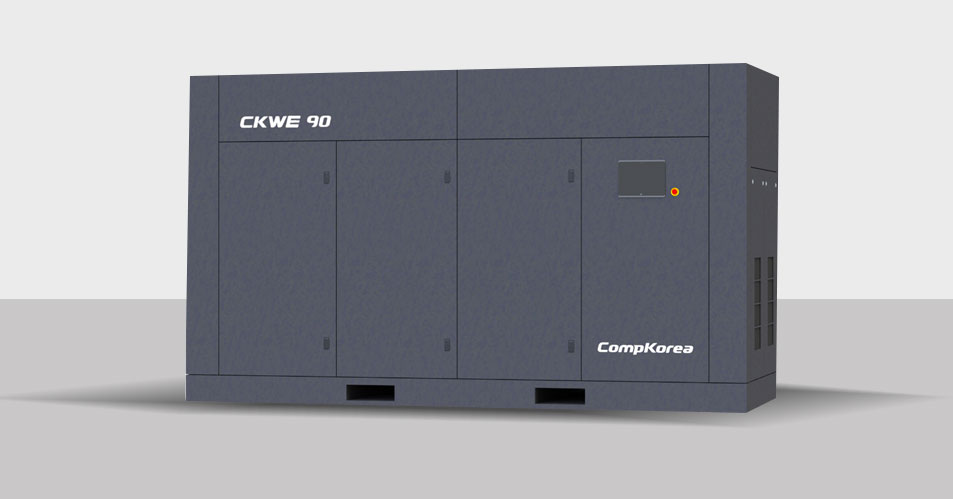

CKW-E Series

에너지절감 2단압축 오일프리 싱글 스크류 콤프레샤 (10 – 15 – 20barG)

Energy Savings 2-Stage, Oil-Free, Single Screw Air Compressor, VSD



Technical Specification

Energy Savings 2-Stage, Oil-Free, Single Screw Air Compressor, VSD

Model Maximum
Pressure
(bar)		 Capacity KW HP 소음
(dB)		 윤활수량
(L)		 냉각수량
(T/h)		 냉각수 구경
입,출구		 Dimension
(L×W×H)mm		 Weight
(kg)		 토출구경
(A)
m³/min ㎥/hr
CKWE 59 15 8 480 37+22 50+30 73 160 26 65A (2 1/2") 3,200 x 2,050 x 1,900 2,300 32A (1 1/4")
CKWE 67 20 37+30 50+40 2,400
CKWE 67 15 10 600 45+22 60+30 73 160 26 65A (2 1/2") 3,200 x 2,050 x 1,900 2,450 32A (1 1/4")
CKWE 75 20 45+30 60+40 2,450
CKWE 85 15 12 720 55+30 75+40 78 220 36 65A (2 1/2") 3,200 x 2,050 x 1,900 2,550 40A (1 1/2")
CKWE 92 20 55+37 75+50 2,600
CKWE 112 15 14 840 75+37 100+50 78 220 42 65A (2 1/2") 3,200 x 2,050 x 1,900 2,700 40A (1 1/2")
CKWE 120 20 75+45 400+60 2,750
CKWE 100 10 16 960 75+30 100+40 80 320 44 65A (2 1/2") 3,600 x 2,050 x 1,900 3,100 65A (2 1/2")
CKWE 120 15 75+45 100+60 3,200
CKWE 130 20 75+55 100+75 3,300 40A (1 1/2")
CKWE 127 10 20 1200 90+37 125+50 82 320 52 80A (3") 3,600 x 2,050 x 1,900 3,200 50A (2")
CKWE 135 13 90+45 125+60 3,300
CKWE 145 15 90+55 125+75 3,400
CKWE 165 20 90+75 125+100 3,600
CKWE 155 10 24 1440 110+45 150+60 82 320 60 80A (3") 3,600 x 2,050 x 1,900 3,500 50A (2")
CKWE 165 13 110+55 150+75 3,600
CKWE 185 15 110+75 150+100 3,800
CKWE 200 20 110+90 150+125 3,900
CKWE 187 10 30 1800 132+55 180+75 84 500 76 125A (5") 4,200 x 2,050 x 2,250 4,600 65A (2 1/2")
CKWE 207 15 132+75 180+100 4,700
CKWE 222 20 132+90 180+125 4,800
CKWE 275 10 40 2400 200+75 270+100 90 500 100 125A (5") 4,200 x 2,050 x 2,250 4,900 80A (3")
CKWE 290 15 200+90 270+125 5,000
CKWE 310 20 200+110 270+150 5,100 65A (2 1/2")
