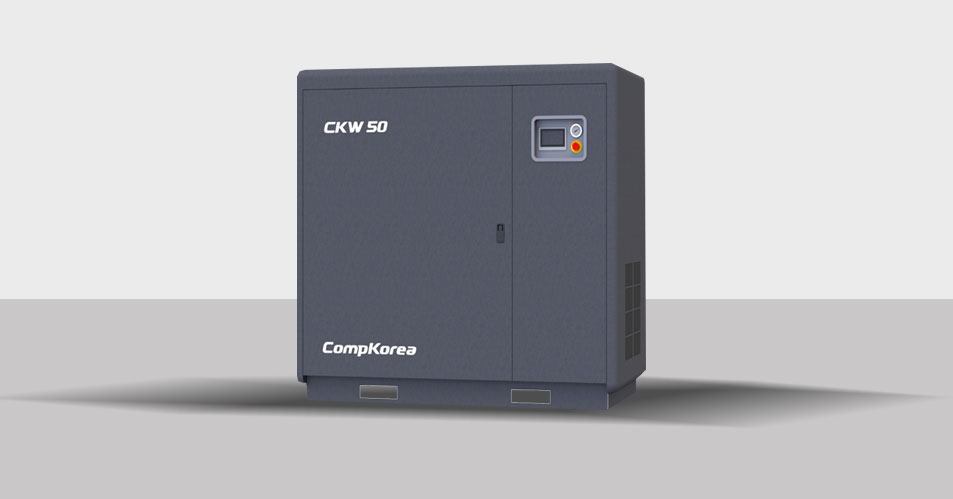

CKW Series

중압 오일프리 싱글 스크류 콤프레샤 (8 – 10 – 12.5barG)

Medium Pressure, Oil-Free, Single Screw Air Compressor, VSD



Technical Specification

Medium Pressure, Oil-Free, Single Screw Air Compressor, VSD

Model Bar Capacity KW HP 소음
(dB)		 냉각수
IN/OUT(A)		 냉각수량
(T/h)		 윤활수량
(L)		 토출구경
(A)		 Dimension
(L×W×H)mm
m³/min ㎥/hr
CKW 08 8 0.35 ~ 1.15 21 ~ 69.0 7.5 10 58 32A (1 1/4") 1.5 10 20A (3/4) 800 x 800 x 1,200 (A/C)
1,350 x 850 x 12,50 (W/C)
10 0.3 ~ 1.02 18 ~ 612
12.5 0.24 ~ 0.81 14.4 ~ 48.6
CKW 11 8 0.54 ~ 1.65 32.4 ~ 99 11 15 60 32A (1 1/4") 2 26 20A (3/4) 1,150 x 755 x 1,340 (A/C)
1,350 x 850 x 1,250 (W/C)
10 0.45 ~ 1.32 27 ~ 79.2
12.5 0.35 ~1.01 21 ~ 60.6
CKW 15 8 0.75 ~ 2.3 45 ~ 138 15 20 63 32A (1 1/4") 3 26 20A (3/4) 1,150 x 755 x 1,340 (A/C)
1,350 x 850 x 1,250 (W/C)
10 0.65 ~ 2.12 39 ~ 127.2
12.5 0.6 ~ 1.6 36 ~ 96
CKW 18 8 0.9 ~ 3.1 54 ~ 186 18 25 65 32A (1 1/4") 4 36 25A (1") 1,400 x 900 x 1,450 (A/C)
1,350 x 950 x 1,250 (W/C)
10 0.9 ~ 2.62 54 ~ 157.2
12.5 0.9 ~2.1 54 ~ 126
CKW 22 8 1.1 ~ 3.42 66 ~ 205.2 22 30 65 32A (1 1/4") 5 36 20A (3/4)
25A (1")		 1,400 x 900 x 1,450 (A/C)
1,350 x 950 x 1,250 (W/C)
10 0.97 ~ 3.15 58.2~ 189
12.5 0.85 ~ 2.62 51 ~157.2
CKW 30 8 1.55 ~ 5.05 93 ~ 303 30 40 67 32A (1 1/4") 7.5 40 32A(1 1/4") 1,550 x 1,150 x 1,.500 (A/C)
1,500 x 1,150 x 1,300 (W/C)
10 1.25 ~ 4.2 75 ~ 252
12.5 1.1 ~3.18 66 ~ 190.8
CKW 37 8 1.91 ~ 6.1 114.6 ~ 366 37 50 67 32A (1 1/4") 9 40 32A(1 1/4") 1,550 x 1,150 x 1,.500 (A/C)
1,500 x 1,150 x 1,300 (W/C)
10 1.6 ~ 5.8 96 ~ 348
12.5 1.42 ~ 5 85.2 ~300
CKW 45 8 2.5 ~ 7.8 150 ~ 468 45 60 70 50A (2") 10 90 50A (2") 1,980 x 1,300 x 1,760 (A/C)
1,800 x 1,300 x 1,670 (W/C)
10 1.91 ~ 6.15 114.6 ~ 369
12.5 1.7 ~ 5.65 102 ~ 339
CKW 55 8 3 ~ 9.6 180 ~ 576 55 75 70 50A (2") 13 90 32A (1 1/4")
50A (2")		 1,980 x 1,300 x 1,760 (A/C)
1,800 x 1,300 x 1,670 (W/C)
10 2.5 ~8.55 150 ~ 513
12.5 2.3 ~ 7.45 138 ~447
CKW 75 8 3.95 ~ 12.6 237 ~ 756 75 100 73 50A (2") 18 120 50A (2") 2,100 x 1,600 x 1,880 (A/C)
1,800 x 1,300 x 1,670 (W/C)
10 3.4 ~ 11.42 204 ~ 685.2
12.5 3 ~ 9.85 180 ~ 591
CKW 90 8 5 ~ 14.8 300 ~ 888 90 125 73 50A (2") 20 120 50A (2") 2,400 x 1,600 x 1,760 (A/C)
1,800 x 1,300 x 1,670 (W/C)
10 4.3 ~13.05 258 ~ 783
12.5 3.72 ~ 12.1 223.2 ~ 726
CKW 110 8 6 ~ 19.5 360 ~ 1170 110 150 78 50A (2") 22 180 65A (2 1/2") 3,000 x 1,700 x 2,250 (A/C)
2,200 x 1,500 x 1,800 (W/C)
10 5.07 ~ 16.8 304.2 ~ 1008
12.5 4.65 ~ 15.15 279 ~ 909
CKW 132 8 6.75 ~ 22.52 405 ~ 1351.2 132 185 78 50A (2") 26 180 65A (2 1/2") 3,000 x 1,700 x 2,250 (A/C)
2,200 x 1,500 x 1,800 (W/C)
10 6 ~20.3 360 ~ 1218
12.5 5.07 ~ 18.25 304.2 ~ 1095
CKW 160 8 8.5 ~ 28.11 510 ~ 1351.2 160 215 80 50A (2") 33 300 80A (3")
65A (2 1/2")		 2,700 x 1,800 x 2,050
2,400 x 1,750 x 1,800
10 7.6~ 24.5 456 ~ 1470
12.5 6.7 ~ 22.15 402 ~ 1329
CKW 185 8 10 ~ 33.65 600 ~ 2019 185 250 80 50A (2") 38 300 80A (3")
65A (2 1/2")		 2,700 x 1,800 x 2,050
2,400 x 1,750 x 1,800
10 8.72 ~28.5 523.2 ~ 1710
12.5 7.75 ~ 24.5 465 ~ 1470
CKW 200 8 11.2 ~ 36.65 672 ~ 2199 200 270 82 50A (2") 44 360 100A (4") 2,700 x 1,800 x 2,050
10 9.68~ 32.75 580.8 ~ 1965
12.5 9.2 ~ 27.5 552 ~ 1650
CKW 220 8 12.2 ~ 39.5 732 ~ 2370 220 300 82 50A (2") 48 360 100A (4") 2,700 x 1,800 x 2,050
10 11.2 ~ 35.8 672 ~ 2148
12.5 9 ~ 29.5 540 ~ 1770
CKW 250 8 13.5 ~ 41 810 ~ 2460 250 350 82 65A (2 1/2")
50A (2")		 50
63		 360 100A (4") 2,700 x 1,800 x 2,050
10 12.3~ 36.3 738 ~ 2178
12.5 10.2 ~ 34.5 612 ~ 2070
CKW 264 8 15.96 ~ 45.6 957.6 ~ 2736 264 360 82 80A (3") 50
63		 360 125A (5") 3,500 x 2,100 x 2,000
10 14.35 ~ 41 861 ~ 2460
12.5 13.12 ~ 37.5 787.2 ~ 2250
