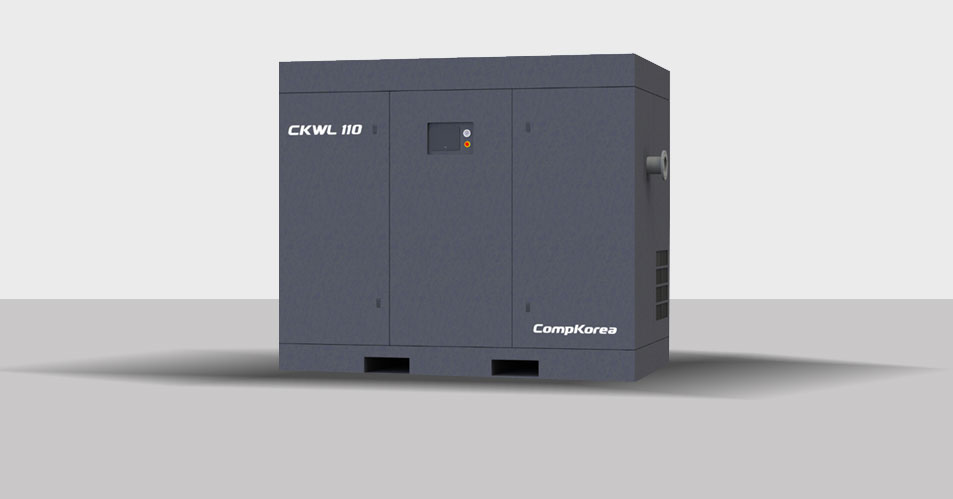

CKW-L Series

저압 오일프리 싱글 스크류 콤프레샤 (2.5 – 3 - 4barG)

Low Pressure, Oil-Free, Single Screw Air Compressor, VSD



Technical Specification

Low Pressure, Oil-Free, Single Screw Air Compressor, VSD

Model Bar Capacity KW HP 소음
(dB)		 냉각수
IN/OUT(A)		 냉각수량
(T/h)		 윤활수량
(L)		 토출구경
(A)		 Dimension
(L×W×H)mm		 Weight
(kg)
m³/min cfm
CKWL 30 25 8.0 480 30 40 66 32A (1 1/4") 7.5 90 25A (1") 1,980 x 1,300 x 1,760 (A/C)
1,800 x 1,300 x 1,670 (W/C)		 1,400 (A/C)
1,200 (W/C)
30 7.8 468
40 6.7 402
CKWL 37 25 10.2 613 37 50 66 32A (1 1/4") 9 90 25A (1") 1,980 x 1,300 x 1,760 (A/C)
1,800 x 1,300 x 1,670 (W/C)		 1,450 (A/C)
1,250 (W/C)
30 9.6 576
40 8.6 513
CKWL 45 25 13.2 792 45 60 69 50A (2") 10 120 32A (1 1/4") 2,100 x 1,600 x 1,880 (A/C)
1,800 x 1,300 x 1,670 (W/C)		 1,690 (A/C)
1,250 (W/C)
30 11.2 672
40 10.0 600
CKWL 55 25 17.0 1020 55 75 69 50A (2") 13 120 32A (1 1/4") 2,400 x 1,300 x 1,760 (A/C)
1,800 x 1,300 x 1,670 (W/C)		 1,770 (A/C)
1,520 (W/C)
30 16.5 990
40 15.0 930
CKWL 75 25 20.5 1230 75 100 72 50A (2") 18 180 32A (1 1/4") 2,200 x 1,500 x 1,800 1,620
30 19.6 1173
40 18.0 1080
CKWL 90 25 24.0 1440 90 125 72 50A (2") 20 180 32A (1 1/4") 2,200 x 1,500 x 1,800 1,660
30 23.1 1386
40 21.5 1290
CKWL 110 25 30.5 1830 110 150 77 50A (2") 22 300 50A (2") 2,700 x 1,800 x 2,050 2,500
30 29.8 1788
40 27.2 1630
CKWL 132 25 33.2 1992 132 180 77 50A (2") 26 300 50A (2")
65A (2 1/2")		 2,700 x 1,800 x 2,050 2,640
30 32.2 1932
40 30.5 1830
CKWL 160 25 43.2 2589 160 215 79 50A (2") 33 360 50A (2")
65A (2 1/2")		 2,700 x 1,800 x 2,050 3,050
30 40.5 2430
40 36.0 2160
CKWL 185 25 46.0 2760 185 250 79 50A (2") 38 360 65A (2 1/2") 2,700 x 1,800 x 2,050 3,170
30 42.3 2538
40 40.0 2400
